UCE-CT220L+ Fault Locator & Curve Tracer
$369.00 – $492.00
Buy more, Save more ...
Description
In the UCE-CT220L Plus version, in addition to the UCE-CT220L, a third 200R limit stage and a buzzer for audible warning during comparison have been added.
Specifications:
- Display: 4.3 inch 480 × 272 pixel color LCD with Touch screen
- Channels Number: 2 (A and B)
- Waveform:Â Sine wave
- Test Frequencies: 10Hz, 100Hz, 500Hz, 2000Hz
- Open circuit Voltage: ±2.5V, ±5V, ±10V, ±20V
- Source Resistance: 200R, 1kΩ, 10kΩ
- Storage: internal 8MB USB disk for storing waveform image and firmware upgrade (bootload)
- Power Consumption:Â 5W
- Dimensions:Â 169 x 83 x 31 mm
- Weight: 295gr
Package List:
- 1 pc UCE-CT220L Tracer
- 2 pcs BNC to 4mm banana cable

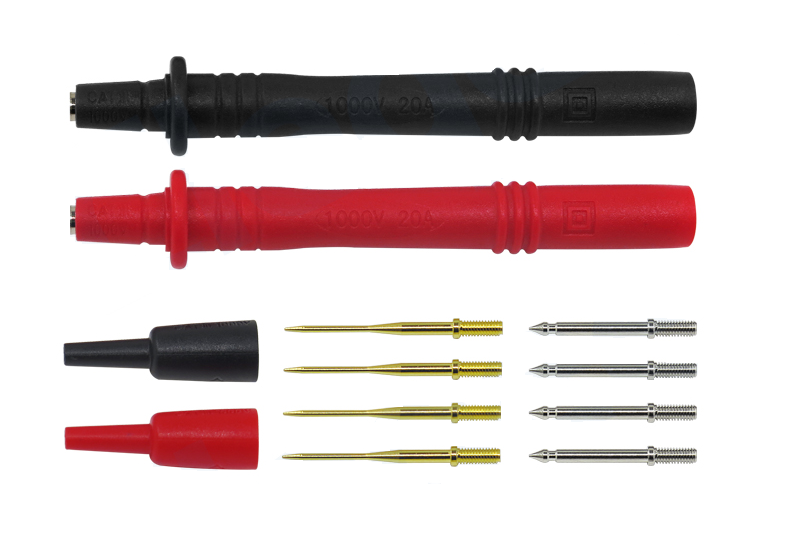

- 2 sets multimeter pen (red and black), and with needle high-voltage cap
- 2 pcs Crocodile Clips
- 1 pc touch pen
- 1 pc USB cable
Additional information
| Weight | 760 g |
|---|---|
| Dimensions | 23 × 12 × 8 cm |
| Case | -, High quality IP68 carrying case |
| PSU | -, 5V 2.0A power supply (EU Type) |
| Device Type | Curve Tracer |
|---|---|
| Oscilloscope mode | NA |
| Signal generator | NA |
| Short-circuit finder | NA |
| Tracer Channel | 2 |
| LCD | 4.3 inch (480x272 pixel) |
| Waveform | Sine |
| Frequency | 10Hz, 100Hz, 500Hz, 2000Hz |
| Open circuit Voltage | ±2.5V, ±5V, ±10V, ±20V |
| Resistor | 200R, 1kΩ, 10kΩ |
| Internal disk | 8MB Flash |
| Database | NA |
| Database Test | NA |
| Capacitance Meter | NA |
| Ohmmeter | NA |
| HDMI out | NA |
| Internal battery | NA |
| Mouse support | NA |
| Carrying Case | Optional |
| Usage | Semi-professional |
Manuals
How to update firmware of UCE-CT220L
Firmware History
Released on 2024-04-18
Recent changes;
- Fixed a bug in channel offset algorithm.
- Some optimizations.
UCE-CT220LÂ V1.33
Released on 2024-04-05
Recent changes;
- Added OPC (one probe comparison) Mode. With this mode, two boards can be compared by making consecutive measurements using only the CH-A channel.
- Improved the zener diode and standard diode detection algorithm. Voltages Vf and Vz are displayed bidirectionally with positive and negative directions.
- Improved the DC measurement algorithm.
- Some optimizations.
UCE-CT220LÂ V1.32
Released on 2024-01-08
Recent changes;
- Fixed a bug with the measurement algorithm.
