UCE-DSO212 with UCE-CT213 Combo Deals
$169.90
Buy more, Save more ...
Description
This combo set performs DC parametric characterization of transistors, thyristors, diodes, SCRs, MOSFETs, optoelectronic components and other semiconductor devices. By buying this set, you can have a 2-channel oscilloscope, signal generator and component tester.
Technical information of UCE-DSO212
- Display: 3.2 inch 320 × 240 pixel color LCD
- Personalisation: customization of display colors
- Two channel input, One channel signal output
- XY Mode
- Analog Bandwidth: 1MHz
- Maximum sampling rate: 10Msps 12-bit
- Sampling depth: 7.2ksps
- Input impedance: 1MΩ
- Vertical sensitivity: 50mV/div~50V/div
- Horizontal sensitivity: 1.25us/div~500ms/div
- Max input voltage: ±32V (X1 Probe), ±320V (X10 Probe)
- Coupling: AC/DC
- Supply voltage: 5V (mini USB)
- Trig modes: Run, single, Hold functions
- Trigger functions: rising / falling edge, Triggering Cursor
- Auto Measurement: frequency, ton time, toff time, period time, peak-to-peak voltage, mean voltage, RMS voltage
- Test signal: 1KHz %50 duty-cycle square wave, 2.0Vpp
- Cursor: differential measurement for time and voltage
- FFT analyze: 512 points FFT analyze
- Signal generator: Sinus, Square, Triangle, Sawtooth, Arbitrary, Tangent, Logaritmic, Coded pulse, Verticaly-cut sine wave, Sinusoidaly modulated square wave. (-5.0~5.0V, 1Hz~100kHz)
- Storage: internal 128MB USB disk for storing waveform image and firmware upgrade (bootload)
- Menu language: English

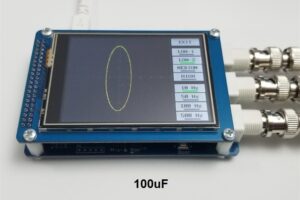

Technical information of V-I Curve Tracker
- Channels Number: 1
- Waveform: Sine wave
- Test Frequencies: 10Hz, 50Hz, 100Hz, 500Hz
- Open circuit Voltage: ±2.5V, ±5V, ±10V, ±20V
- Source Resistance: 500Ω, 2.2kΩ, 10kΩ
- Power Consumption: <1W
- Dimensions: 107x 65 x 20 mm
Package List:
- 1 pc UCE-DSO212 3.2″ TFT Digital Oscilloscope
- 1 pc UCE-CT213 Curve Tracer Unit
- 2 pcs X1, X10 Probe
- 1 pc touch pen
- 2 pcs USB cable
- 1 pc Test Probes
- 3 pcs BNC Adapter
Additional information
| Weight | 620 g |
|---|---|
| Dimensions | 20 × 13 × 6 cm |
| Device Type | Oscilloscope + Signal Generator + Curve Tracer |
|---|---|
| Oscilloscope mode | 2-Ch, 1Mhz BW, 10Msps |
| Signal generator | 1-Ch, 100kHz |
| Short-circuit finder | NA |
| Tracer Channel | 1 |
| LCD | 3.2 inch (320x240 pixel) |
| Waveform | Sine |
| Frequency | 10Hz, 50Hz, 100Hz, 500Hz |
| Open circuit Voltage | ±2.5V, ±5V, ±10V, ±20V |
| Resistor | 500Ω, 2.2kΩ, 10kΩ |
| Internal disk | 128MB MMC |
| Database | NA |
| Database Test | NA |
| Capacitance Meter | NA |
| Ohmmeter | NA |
| HDMI out | NA |
| Internal battery | NA |
| Mouse support | NA |
| Carrying Case | NA |
| Usage | Amateur |
