Description

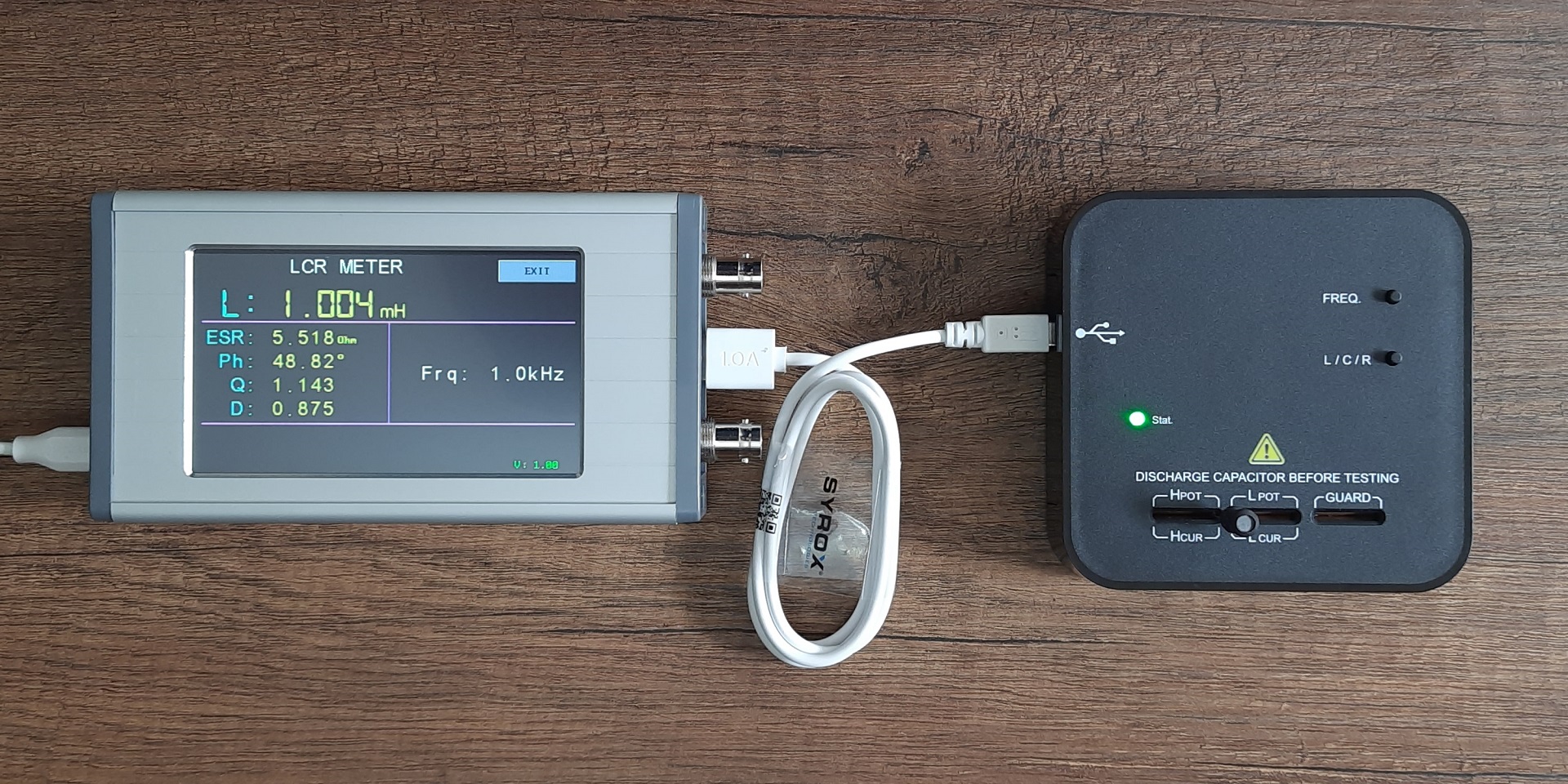

UCE-LCR-1 is designed to work with UCE-CT321L. It is a complementary add-on device for UCE-CT321L, which can perform detailed measurement of passive components such as inductance, capacitance and resistance.

Please note that UCE-LCR-1 is not a stand-alone product. It is developed for UCE-CT321L and can only work with this device.

Specifications:

• Measurement Frequency: 100Hz, 1kHz, 10KHz
• Open Voltage: 0.4Vpp (±0.2V)
• Resistance range: 0.001Ω — 20MΩ
• Capacitance range: 0.1pF — 20mF
• Inductance range: 0.1uH — 20H
• Equivalent Circuit Mode: Serial
• Accuracy: ±(0.25% + 8 digit)
• DCR: No
• Measurement Connections: 4 Kelvin wires on the test terminals
• Socket structure compatible with four-terminal Kelvin test probe

Package List:

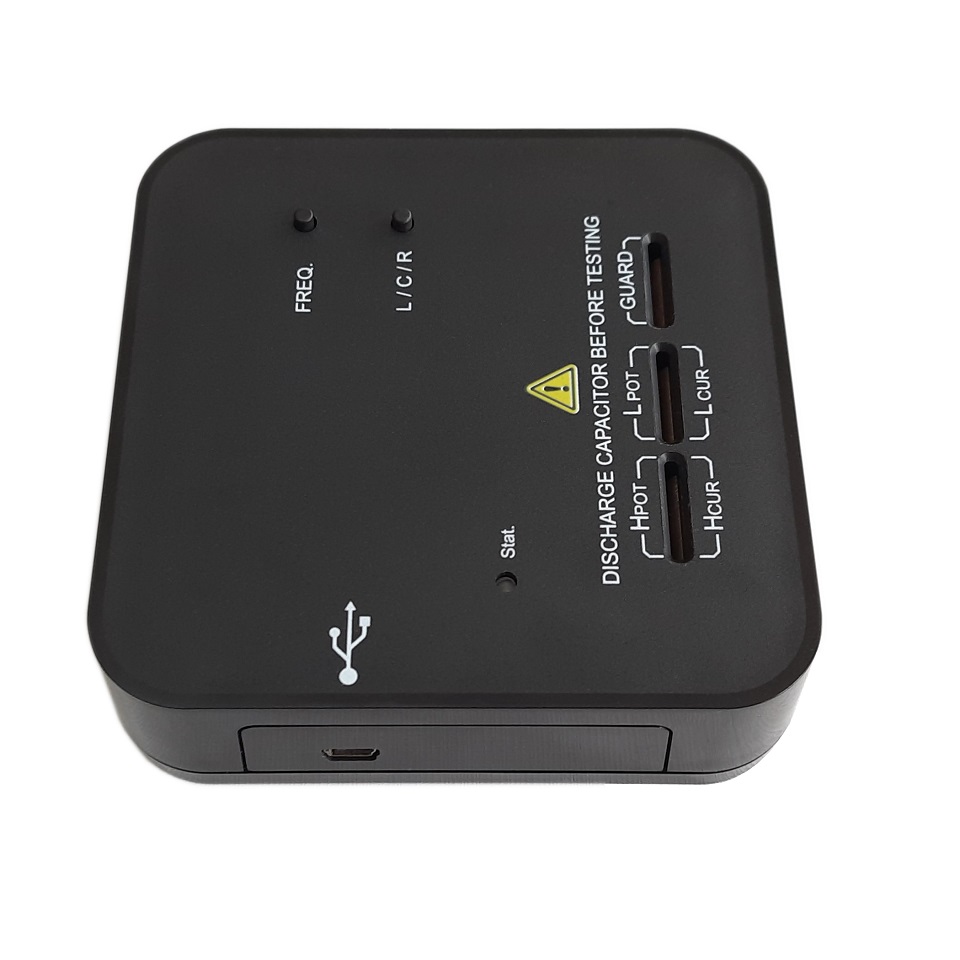

• UCE-LCR-1 LCR Meter device
• USB cable
• Zero impedance board
